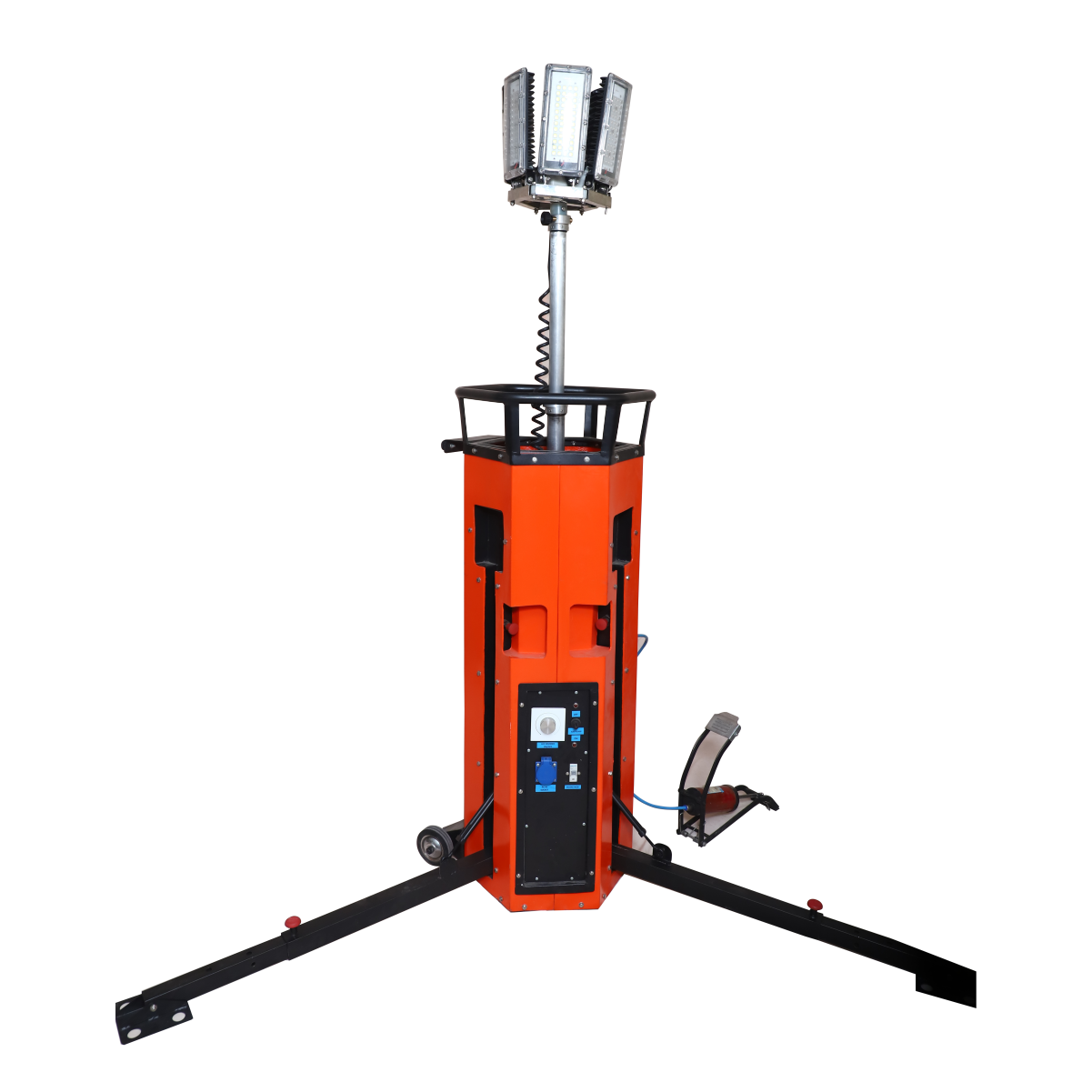

MOONLIGHT 360

Model: MoonLight 360
Total lumenMore than 50,000
Led lamp with DimmerYes
IP Rating for led lamp/ LuminaireIP 67
BIS approved led lamp / LuminaireYes
Operating temperature -20 °C to +50 °C
Input Voltage 100 to 305 VAC/ 50 hz
Tower mast materiallightweight aluminum alloy (special grade high strength)
Mast operation typePneumatic type with press of a single button
Total height from groundminimum 4 Meter
180-degree light to 360° operation Yes possible
Integrated wheelsYes
Adjusted Tripod legsYes
Transport dimensions510mm x 495 mm x 1280mm
Weight of the light tower45kg (without accessories)
Power sourceHonda EP 1000 Genset runs for 9 hours on full load
Wind resistance:Upto 12.5M/s without resistance
Certifications:BIS approved Led Luminaire & Drivers. In addition, complete product tested from NABL Approved lab

KeyFeature

General
A single person can deploy During storage, it will take little space
Simple to operate, no prior training etc. requireSafely operation with color coded guidance
Multiple units can be powered from a portable generatorManufactured for easy replacement of parts with a modular design
Technical
Produces at least 50000 lumens with 360 watts power consumption (60 watts x 6) 50 000 hours lifetime on LEDs, 2 years warranty on structural components
Produces approximately 30% more light than 4x400W halogen systemsConsumes 75% less power than 4×400 halogen systems
Can be used as a 360° or 180° flood lightApprox weight 45 Kg for Whole system
13.5 feet height from ground when extendedPower source: Battery bank or Genset
Integrated wheels, Dimmable light
Adjustable leg angelsAdjustable led angels
LED Lamp Wattage 60-Watt x 6 (360 Watt)Provided with pneumatic operation with 1 touch of a button to raise the mast and provision to raise the mast manually
Application Area of MoonLight 360
Construction places
Remote Places
Works Shops
