High Pressure water mist & CAFS is an effective first responder as it assure maximum fire rating of 55A, 233B,E1000V with control discharge and lidgt weight gun of 750 grams approx.The lanching Distance is ≥ 12 meters and is applicable on all three classes of fire (Class A, Class B & Electrical/Short Circuit Fire).We also provide AR AFFF for solvent fires with our system.
HSE team/fire personal would like to respond immediately to dowse Class A Class B and Electrical Fire but the difficulty is minimum fire performance and lanching distance .Maintenance is a big and onging issue. it is difficult to hold 17 kg extinguisher in hand and do fire fighting.
Technical Spacification | ||
|---|---|---|
| Specifications | 9 liter Carbon Composite with PET Liner | 50 liter Carbon Composite with PET Liner |

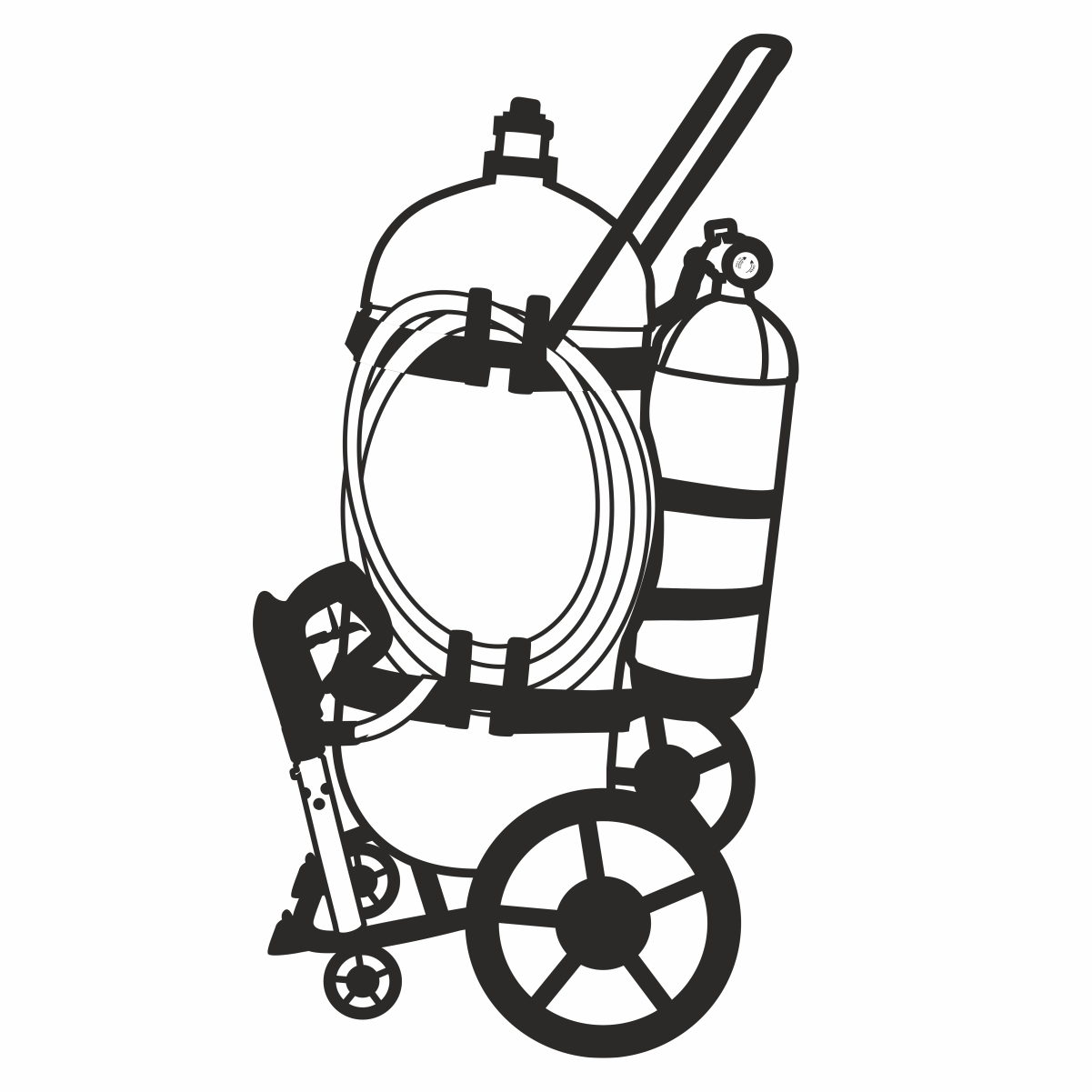

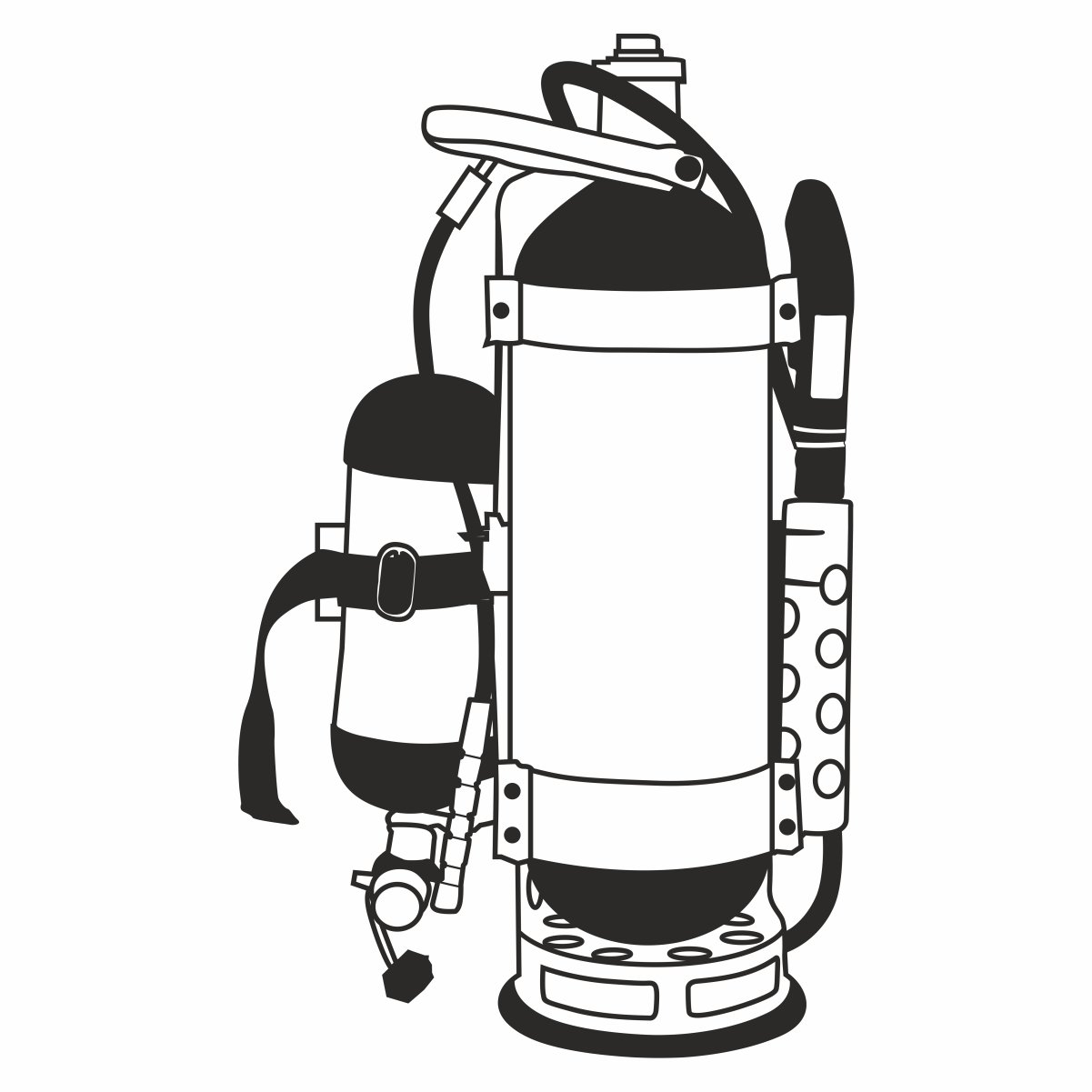

| Product Images |  |
|
| Operating Pressure | 37-38 bar | 37-38 bar |
| Weight of Empty System | ≤ 11 Kg | ≤ 40 Kg |
| Weight of FIlled System | ≤ 20 Kg | ≤ 90 Kg |
| Diameter for Vessel (Red) | ≤ 20 Kg | ≤ 90 Kg |
| Height | 670mm (Approx) | 1100mm (Approx) |
| Minimum Length of Hose | 1.3 Meters | 5 Meters |
| Weight of Extinguisher Gun (Jet Model) | 750 gms. (Approx) | 750 gms. (Approx) |
| Minimum Functional Time with Continuous Jet | 26+ sec. (Approx) | 145+ sec. (Approx) |
| Lanching Distance | ≥ 12 Meters | ≥ 12 Meters |
| Propellant | Compressed Air | Compressed Air |
| Fire Rating | 55A, 233B, E1000V | 55A, IVB, E1000V |
| Reffered Standards | EN 3-7:2004+A1:2007-10 | EN 1866-1:2007-10 |
| Ultra Light Carbon Composite PET Liner PESO Approved Cylinder - 20 Years Shelf Life | 2.0L X 300 bar | 6.8L X 300 bar |
